AREMA Terminal Blocks

Product Synopsis

Twinco Terminal Blocks are sold either Bare Block, with 1 Washer and 1 Clamp Nut per post, “Complete with Hardware,” or “Hardware Bulk Shipped”

“Complete w/ hardware” indicates terminal post hardware is supplied. Hardware consists of 3 Washers, 2 Binding Nuts and 1 Clamp Nut per terminal post.

Consult the factory for any special hardware arrangements or assembly requirements.

  • Molded from High Quality Thermoset Phenolic

  • AREMA 14.1.12-1 Terminal Posts

  • Easily Cut

DOWNLOAD SPECS

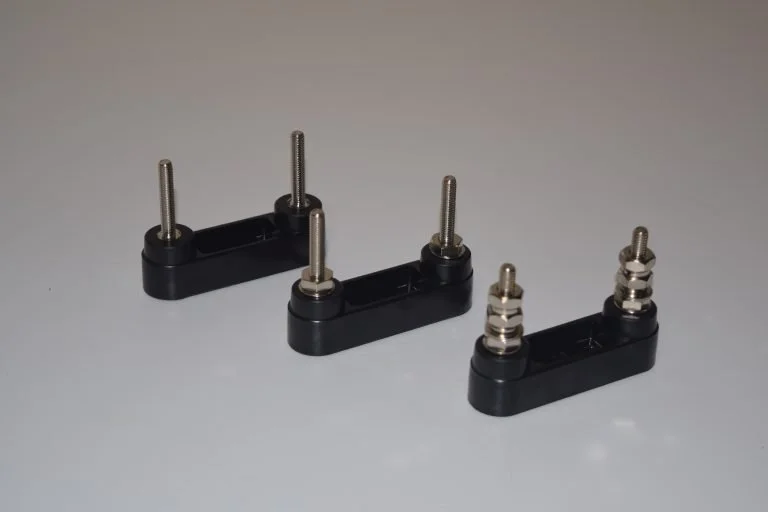

  • 2 Post Terminal Block

    Part # 014-0633-0-A
    2-3/8″ Centers (Bare Block)

    Part # 014-0633-0-0
    Assy, 2-3/8″ Centers with Clamp Nut & Washer

    Part # 000-1828-1-0
    Assy, 2-3/8″ Centers, Complete with Hardware

    Part # 000-1828-2-0
    Assy, 2-3/8″ Centers, Hardware Bulk Shipped

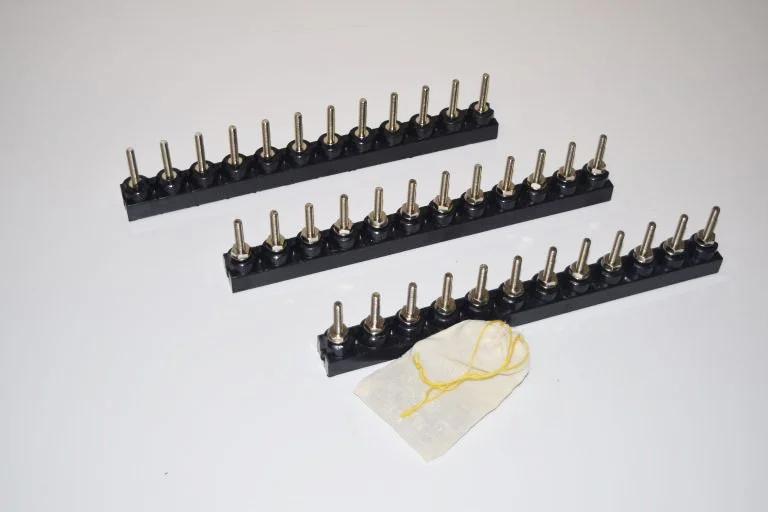

  • 12 Post Single Row Terminal Block

    Part # 000-1697-0-A
    1″ Centers (Bare Block)

    Part # 000-1697-0-0
    1″ Centers with Clamp Nut & Washer

    Part # 000-1805-1-0
    1″ Centers, Complete with Hardware

    Part # 000-1805-3-0
    1″ Centers, Hardware Bulk Shipped

    *Terminal Block can be supplied in shorter lengths, consult factory

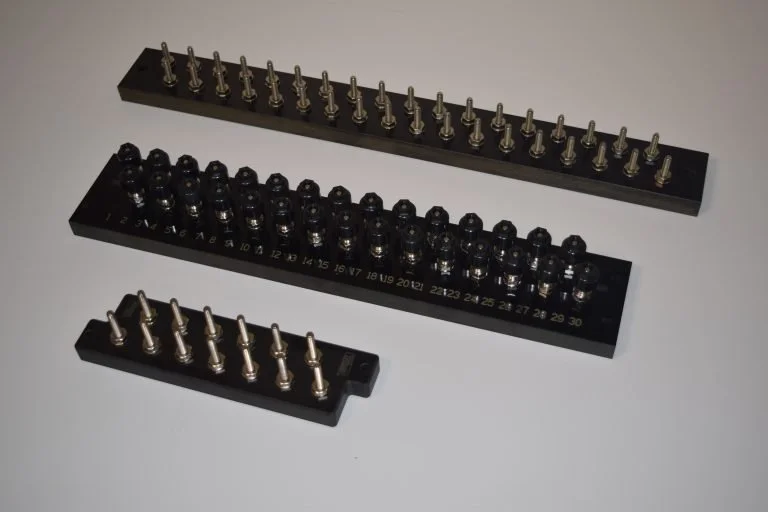

  • Terminal Board Assemblies

    Part # 000-5408-1-0
    13 Way, Complete with Hardware

    Part # 000-5408-2-0
    14 Way, Complete with Hardware

    Part # 000-1817-1-0
    17 Way, Complete with Hardware

    Part # 000-1816-1-0
    23 Way, Complete with Hardware

    Part # 000-1927-1-0
    28 Way, Complete with Hardware

    Part # 000-3548-1-0
    30 Way, Complete with Hardware

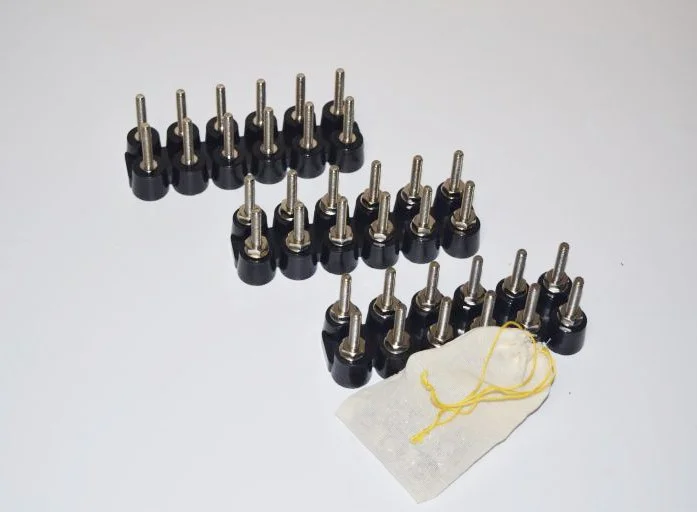

  • 12 Post Double Row Terminal Block

    Part # 014-0632-0-A
    1″ Centers (Bare Block)

    Part # 000-1814-1-0
    1″ Center, Complete with Hardware, includes 6 Style 2 Connectors

    Part # 000-1814-2-0
    1″ Center, Complete with Hardware, includes 6 Style 2 Connectors, Hardware Bulk Shipped

    Part # 000-4025-1-0
    1″ Center, Complete with Hardware, less Terminal Connectors

    Part # 000-4025-2-0
    1″ Center, Complete with Hardware, less Terminal Connectors, Bulk Shipped

    *Terminal Block can be supplied in shorter lengths, consult factory
